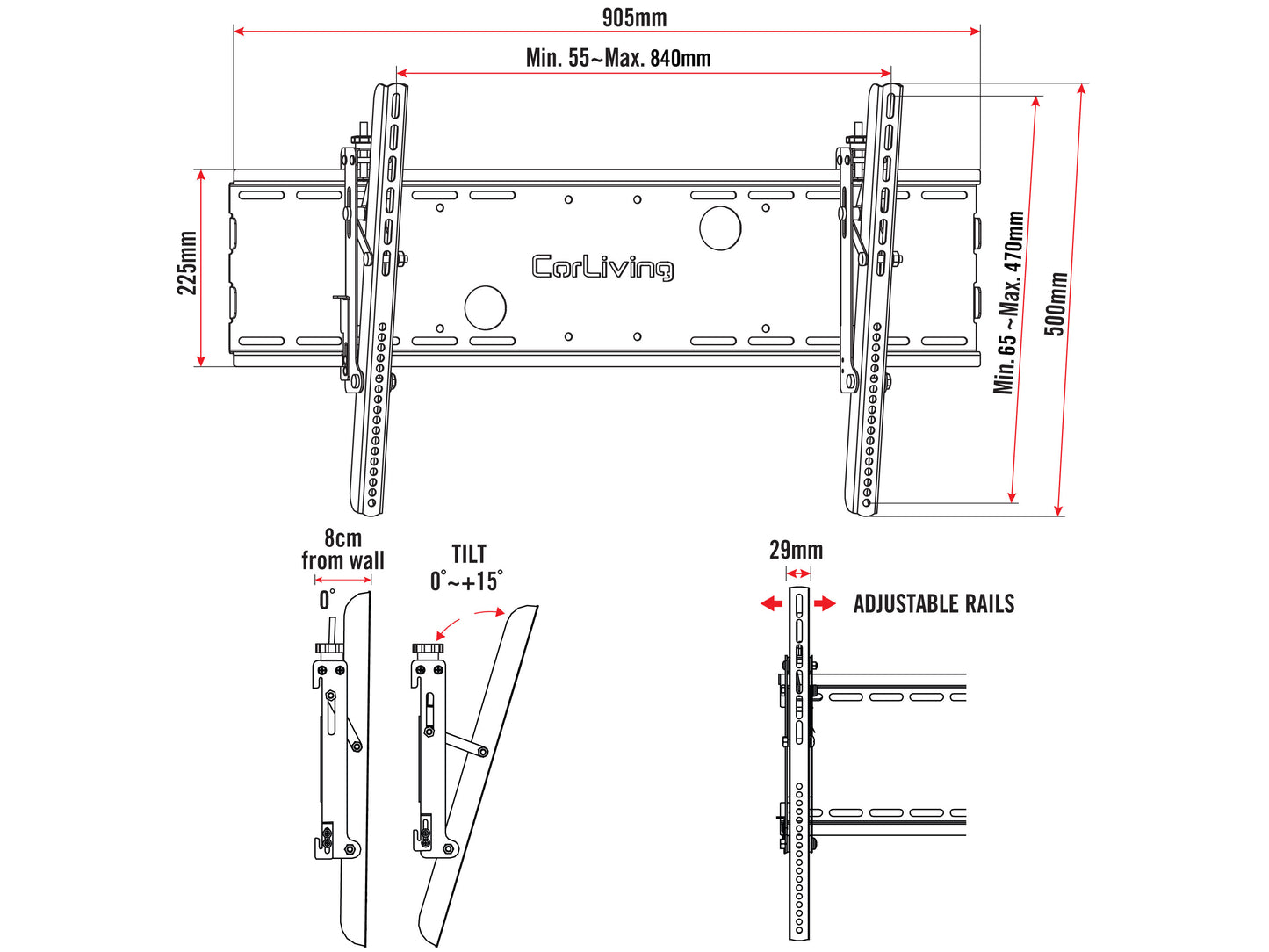

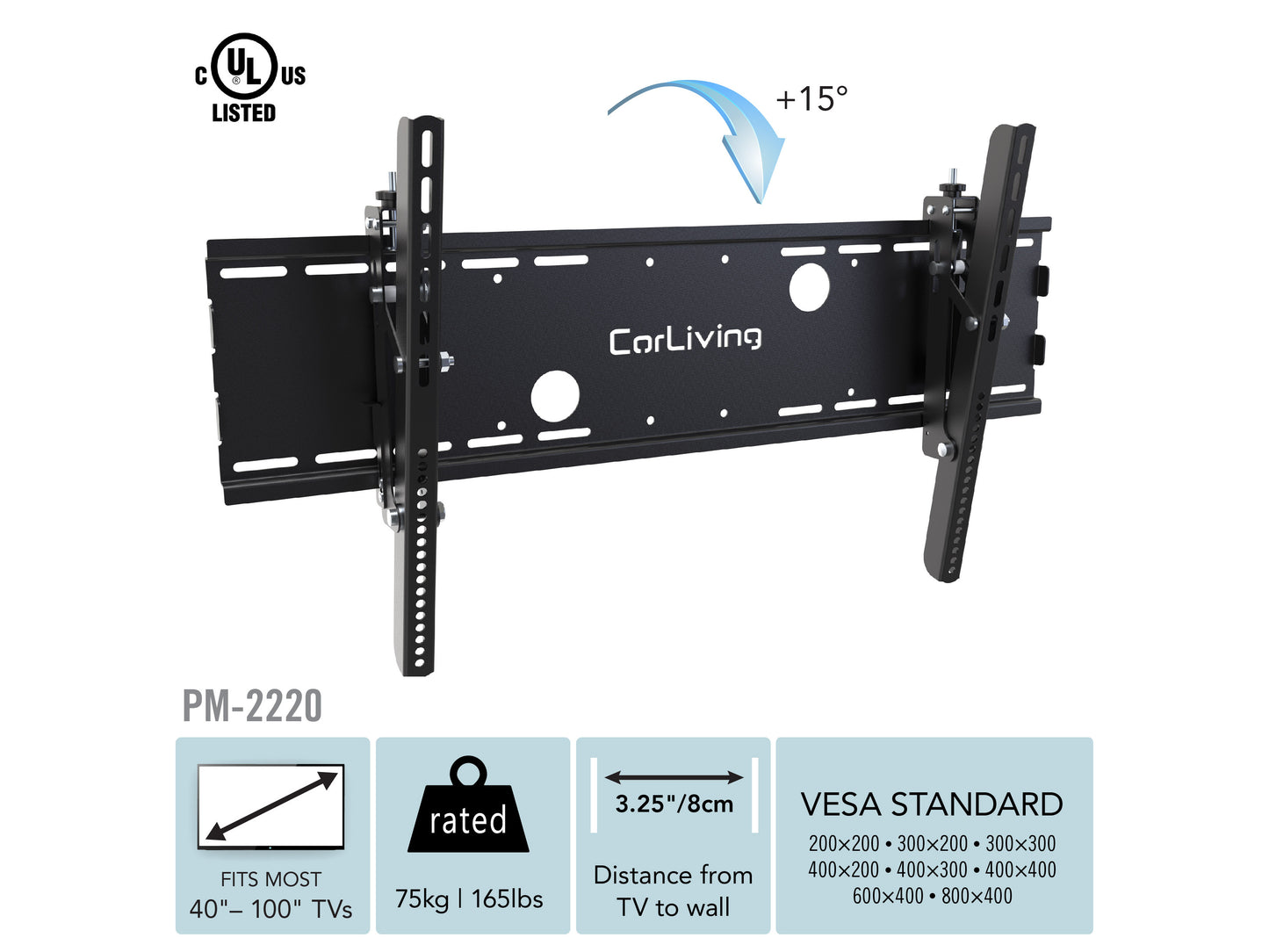

- Fits most flat and curved panel TVs from 40" ‐ 100" TVs
- Supports up to 165lbs/75kg
- Adjustable forward 15° tilting angle
- VESA sizes from 200x200 to 800x400
- Sits only 3.5" (8.8cm) from the wall
- Extra wide wall plate measuring at 35.75" (90.5cm) accommodates 16" and 24" wall stud spacing
- Heavy duty steel construction with powder coated finish
- Locking system for added security (lock not included)
- Bubble level included for easy installation
Tilting TV Wall Mount for 40" - 100" TVs
Capable of supporting large TVs up to 100" with its extra wide wall plate, the PM‐2220 is the perfect mount to maximize your entertainment space. Rest easy knowing your new heavy duty TV mount features a handy locking system to protect against theft, while the adjustable forward tilt option enhances viewing angles in any space.Product Specifications

Assembly Required | Yes |
Product Dimensions | 20"H x 36"W x 3"D |
Product Weight | 13 lbs. |
Carton Shipping Dimensions | 3"H x 37"W x 10"D |
Carton Shipping Weight | 15 lbs. |
Materials | Metal |
Max Weight | 165 lbs. |
